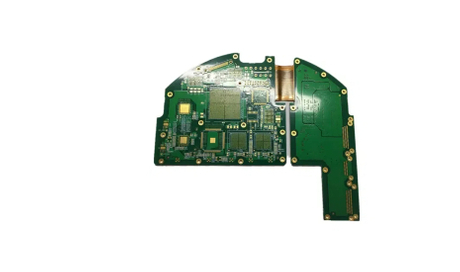

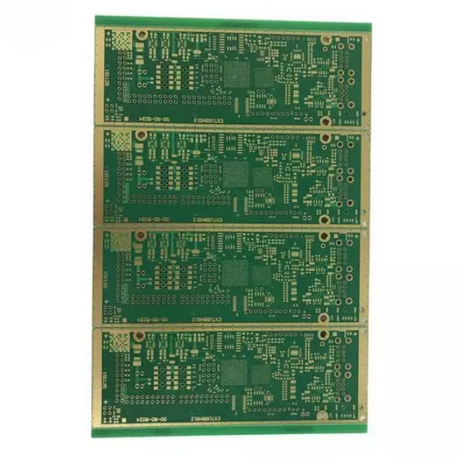

In today's fast-paced electronics industry, PCB design plays a crucial role in determining the overall performance and reliability of a product. Such as multilayer PCB, double sided PCB, etc. In this article, we will explore five essential PCB design tips that can help improve product performance, ensuring that your electronic devices are optimized for the market.
Before diving into the tips, it's important to note that PCB assembly is not just about placing components on a board. It involves a detailed understanding of electrical, thermal, and mechanical properties. Proper design ensures that the product operates efficiently, reduces electromagnetic interference (EMI), and enhances the overall durability of the device.

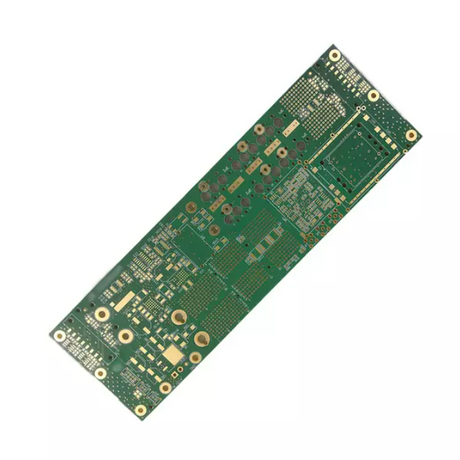

The width of the traces on a PCB is critical to ensuring that the board can handle the required current without overheating. If the trace is too narrow, it can lead to excessive heat generation, which can damage the board and reduce its lifespan. On the other hand, wider traces can increase the overall size of the PCB, which may not be ideal for compact designs.
Tip: Use a trace width calculator to determine the optimal width for your design based on the current requirements. Ensure that the spacing between traces is sufficient to prevent short circuits and reduce the risk of crosstalk between signals. This is especially important in high-frequency designs where signal integrity is critical.
Grounding is one of the most critical aspects of PCB design. A poor grounding strategy can lead to noise, signal integrity issues, and even system failures. To ensure that your product performs optimally, it's essential to implement a solid grounding technique.
Tip: Use a ground plane to provide a low-impedance path for return currents. This helps in reducing noise and improving signal integrity. Additionally, ensure that the ground plane is continuous and avoid splitting it unnecessarily. For high-frequency designs, it's crucial to keep the ground plane as close to the signal traces as possible to minimize loop areas and reduce electromagnetic interference (EMI).
Electromagnetic interference (EMI) can significantly degrade the performance of your product, especially in sensitive applications such as medical devices or communication systems. EMI occurs when unwanted electromagnetic signals interfere with the operation of your circuit, leading to signal distortion, data loss, or even complete system failure.
Tip: To minimize EMI, keep high-speed signal traces as short as possible and avoid routing them near sensitive analog circuits. Additionally, use shielding techniques such as ground planes and metal enclosures to protect your circuit from external interference. Proper placement of decoupling capacitors can also help in reducing EMI by filtering out high-frequency noise.
Heat dissipation is a critical factor in PCB design, especially for high-power applications. If the heat generated by the components is not properly managed, it can lead to thermal stress, which can degrade the performance and reliability of the product.
Tip: Use thermal vias to transfer heat from the components to the ground plane or a dedicated heat sink. Additionally, consider using thicker copper layers for high-current traces to improve heat dissipation. For components that generate a significant amount of heat, such as power transistors or voltage regulators, ensure that they are placed in areas with good airflow or near heat sinks.
Thermal management is a key consideration in PCB design.

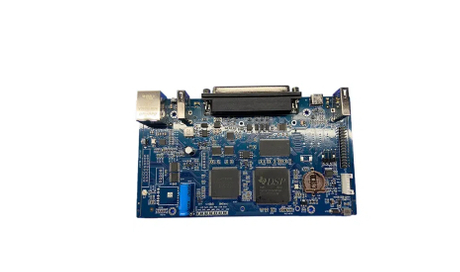

Component placement is a critical step in PCB design that can affect both the performance and manufacturability of the product. Poor placement can lead to signal integrity issues, increased EMI, and difficulties during assembly.
Tip: Place high-speed components, such as microcontrollers and memory chips, as close to each other as possible to minimize signal delay and reduce the risk of crosstalk. Additionally, ensure that power components, such as voltage regulators and power transistors, are placed near the power input to minimize voltage drops. For analog circuits, keep sensitive components away from noisy digital circuits to reduce interference.
Proper component placement can also improve the manufacturability of the PCB, reducing the risk of assembly errors and improving yield.
In conclusion, optimizing PCB design is essential for enhancing product performance and ensuring reliability. By following the tips outlined in this article—optimizing trace width and spacing, implementing proper grounding techniques, minimizing EMI, using thermal management techniques, and ensuring proper component placement—you can significantly improve the efficiency and durability of your products.
